How Railroad Joint Bars Keep Rails Aligned and Secure

Railway infrastructure is critical for the transportation of goods and people across the world. Maintaining the safety and efficiency of railway systems is vital to ensure that they can operate smoothly and effectively. One essential component of railway infrastructure is the railroad joint bar, which plays a crucial role in keeping the rails aligned and secure.

Railroad joint bars are metal bars used to connect two rails together at the joints. These bars are an integral part of railway infrastructure as they prevent the rails from separating, ensuring the stability and safety of the rail line. They also help distribute the weight of the train evenly across the tracks, reducing the impact on the railway infrastructure.

The importance of railroad joint bars in railway infrastructure cannot be overstated. Without these bars, the rails would not stay aligned and secure, leading to derailments and accidents. Railway operators must maintain and repair joint bars regularly to ensure the longevity and safety of the rail lines.

Next, we will explore the role of railroad joint bars in railway maintenance and repair, the different types of joint bars available, the science behind how they work, innovations in joint bar technology, and frequently asked questions about joint bars.

The Role of Railroad Joint Bars in Railway Maintenance and Repair

Railroad joint bars are an essential component of railway infrastructure as they hold the rails together and prevent separation at the joints. The bars are typically made of steel and are bolted to the ends of the rails to provide a continuous path for the train wheels to travel on.

The joint bars play a vital role in maintaining the integrity of the railway system. They distribute the weight of the train evenly across the tracks, reducing stress on the rails and ties. Without the joint bars, the rails would be more prone to movement and would not stay in place, which could result in derailments or accidents.

To ensure the safety and longevity of the rail lines, it is crucial to maintain and repair the joint bars regularly. Over time, railroad joint bars can become worn, damaged, or corroded, which can weaken their ability to hold the rails together. Railway operators must inspect the joint bars frequently to identify any issues and repair or replace them as needed.

Maintaining and repairing joint bars also helps prevent downtime and costly repairs. If joint bars are not properly maintained, the rails may become misaligned, leading to slower train speeds and increased wear and tear on the tracks. In severe cases, the tracks may need to be shut down for repairs, causing significant disruptions to railway operations.

The role of railroad joint bars in railway maintenance and repair is crucial to ensure the safety and longevity of the railway infrastructure. By holding the rails together and distributing the weight of the train evenly across the tracks, joint bars help prevent accidents and downtime. Regular maintenance and repair of joint bars are necessary to ensure their effectiveness and prevent costly repairs in the future.

Types of Railroad Joint Bars Made by Quality Joint Bar Manufacturer AGICO

As a professional railroad joint bars manufacturer, AGICO offers you all types of quality railroad joint bars. Welcome to inquire and buy. There are several types of joint bars available, each with its specific applications and advantages.

Types of Railroad Joint Bars

1. Common Joint Bars

Common joint bars, also known as four-hole joint bars, are the most common type of joint bars used in railway systems. These joint bars are usually made of steel and are designed to join rails of the same size. They have four bolt holes and are relatively easy to install.

2. Compromise Joint Bars

Compromise joint bars, also known as three-hole joint bars, are used to join rails of different sizes. These joint bars have three bolt holes, with the middle hole larger than the other two to accommodate the larger rail size. Compromise joint bars are typically used in areas where rail sizes change, such as switches and crossings.

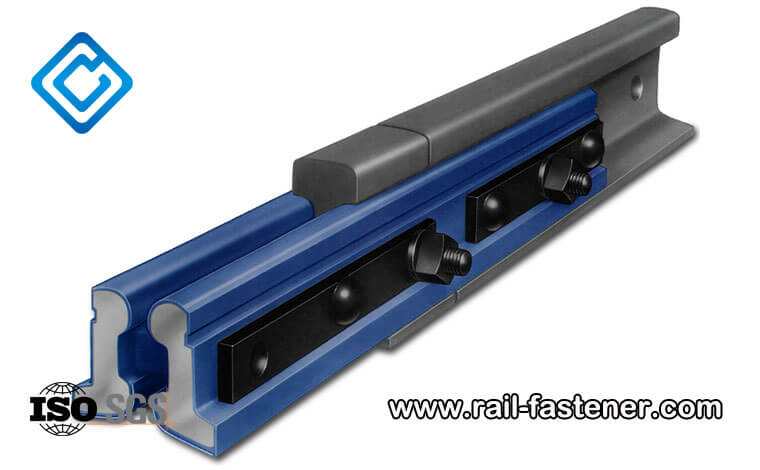

3. Insulated Joint Bars

Insulated joint bars, also known as electrically insulated joint bars, are used to create electrical breaks in the rails. These joint bars are typically used in areas where an electrical current may cause interference, such as near signals or in electrified railways. Insulated joint bars are designed to prevent the electrical current from passing through the joint, providing an electrical break.

Advantages and Disadvantages of Each Type of Joint Bar

Each type of joint bar has its advantages and disadvantages, depending on the specific application. Common joint bars are easy to install, but they are only suitable for joining rails of the same size. Compromise joint bars are versatile and can join rails of different sizes, but they require careful installation to ensure proper alignment. Insulated joint bars are essential for preventing electrical interference, but they are more challenging to install and require careful maintenance to ensure proper functioning.
